Tempered Laminated Glass Sheets Architectural Building 6.38mm 10.38mm 12.76mm 13.52mm Safety Clear SGP PVB
Lamintaed Safety Glass
Laurel Laminated Safety Glass is produced with two or morethoroughly cleaned panels with one or more polyvingl-butyralfoils(PVB) are mounted on each other in a clean room. Then the sand- -wich is pre-strenghened in a rolling process at approx.200℃ heat and then put these glasses on a shelf into the autoclave with about 130℃ heat and 10 bar pressure.laminated glass is available in all glass types,colors,and interlayer thickness including clear,tinted,reflective,Low-e, spandrel,ceramic frit,silk-screened,pattern glass, tempered glass,art glass and or alone.
As safety glass, laminated glass is superior to tempered glass in performance.
Even if the glass is cracked, the glass fragments still stick to the interlayer which can effectively prevent cutting and falling accidents. Using different glass and film can endow laminated glass with different properties such as UV protection, energy saving, sound insulation, theft prevention, hurricane and earthquake resistance, and decoration.
Laminated glass is composed of single or multiple layers of glass bonded together with interlayers like PVB (polyvinyl butyral), EVA (ethylene-vinyl acetate), and SGP (SentryGlas® Plus, an ionoplast polymer). This will result in a durable, versatile and safe glass material.
| Product name | Architectural Glass 6.38mm 10.38mm 12.76mm Clear PVB SGP Tempered Laminated Glass |
| Size | 3660*2440mm, 3300*2440mm, 3300*2250mm, 3300*2140mm, 3660*2140mm, 1830*2440mm, 1650*2140mm, 2760*2140mm, 2440*2140mm, 2440*2000mm,etc. |
| Single glass sheets thickness | 2/2.5/2.7/2.8/3/4/5/6/8/10/12/15/19mm |
| PVB thickness | 0.3/0.38/0.76/1.14/1.52/1.9/2.28/3.8mm |
| Type of glass | Clear float, Ultra clear, Bronze tinted float, Euro grey tinted float, Dark grey tinted float, Dark blue tinted float, Fort/Lake
blue tinted float, F-Green tinted float, Dark green tinted float |
| Interlayer film color | Clear, Milky white, Bronze, Dark grey, Euro grey, Dark blue, Light blue, Dark green, Light Green, Red, Yellow, Purple, Orange,Pink, Black, Porcelain white |
| MOQ | 50 square meters |
| Brand of PVB | Decent, KB, DuPont, Solutia, Sekusui, Trosifol |
| Delivery time | Within 15-20 days |
Laminated glass is widely used in various architectural and structural glazing applications, including curtain walls, facades,balustrades, skylights, canopies, and glass floors. According to different applications, special shapes or edge treatments can be adopted, which can be widely used in the furniture industry.
1. Inside vehicles including RVs and boats
2. Outdoor , poolside
3. Skylights
4. Ground-level windows and doors
5. Floors and stairs
6. Balustrade and handrails
7. Canopy
8. Partitions
|
|

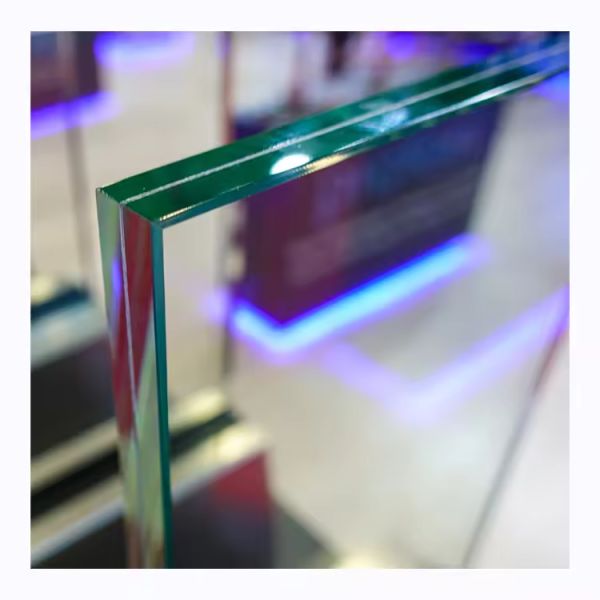

Tempered Laminated Glass Sheets Architectural Building 6.38mm 10.38mm 12.76mm 13.52mm Safety Clear SGP PVB Images
|
